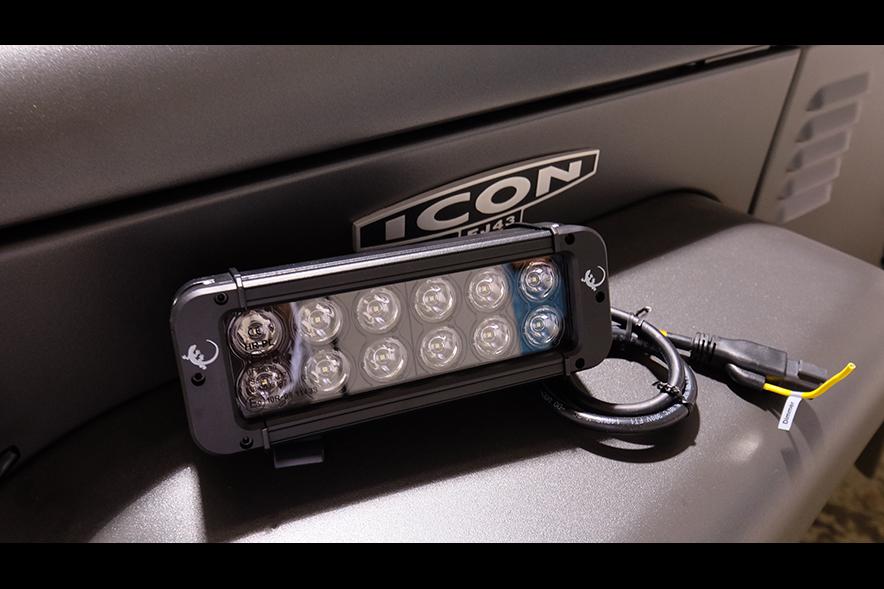

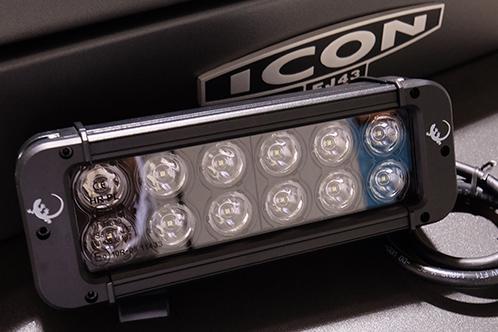

ICON LED Large Aux Lights (ICON-PX1210)
Price: $419.99

These VisionX LED auxiliary lights are unique to ICON. They pack a punch in a small package. We run them in our BR and FJ builds, and find many additional uses for them in our one-off builds (rack lights, reverse lights...). Sold as a single light. Vision X took the already insanely bright Xmitter Prime LED Light Bars and swapped the standard 3-watt LEDs for all new 5-watt versions for us at ICON. Combine that with new ultra efficient electronic drivers and our most efficient optics to date. Then double the lumen output and look out! 5916 lumens out of a 8" LED bar! ("Sales are final on all our ICON lights, no returns no refunds")


Weatherproof Deutsch Connector with Plug-and-Play Harness
Extruded 6061 Aluminum Housing
Polycarbonate Lens

Integrated Electronic Thermal Management (ETM)
New Generation LED is Driven to 90% Efficiency
Patent Pending Integrated Mounting System
PWM Integrated Dimming Circuitry
90% Optically Pure
25° Beam Pattern

LEDs: 12

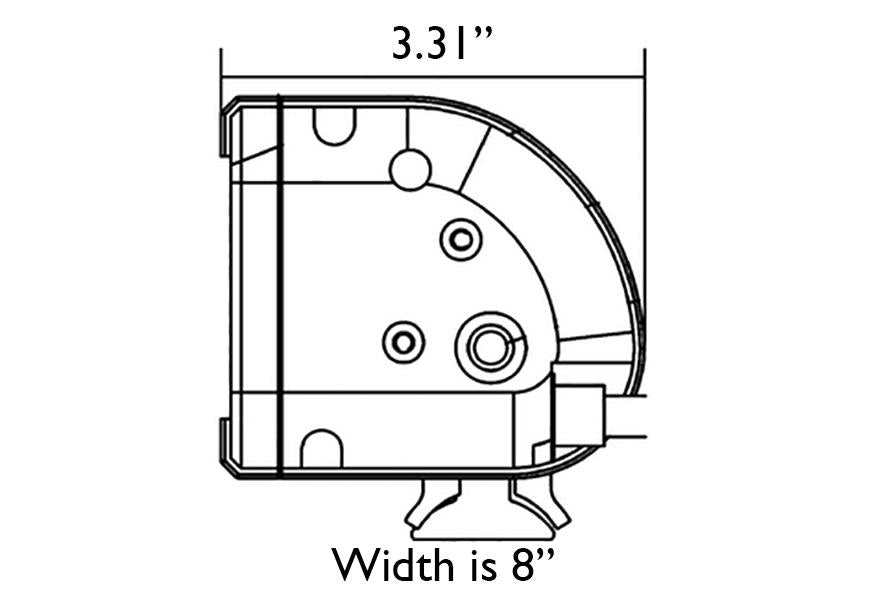

Length: 7.9"
Lumens: 5,916 Lm
Amp Draw: 5.00A @12V DC
Wattage: 60

Housing Color: Black
Mounting Depth: 2.00"
Height: 3.94"
Depth: 3.75"
Input Voltage: 9-32V DC
IP Rating: IP-68

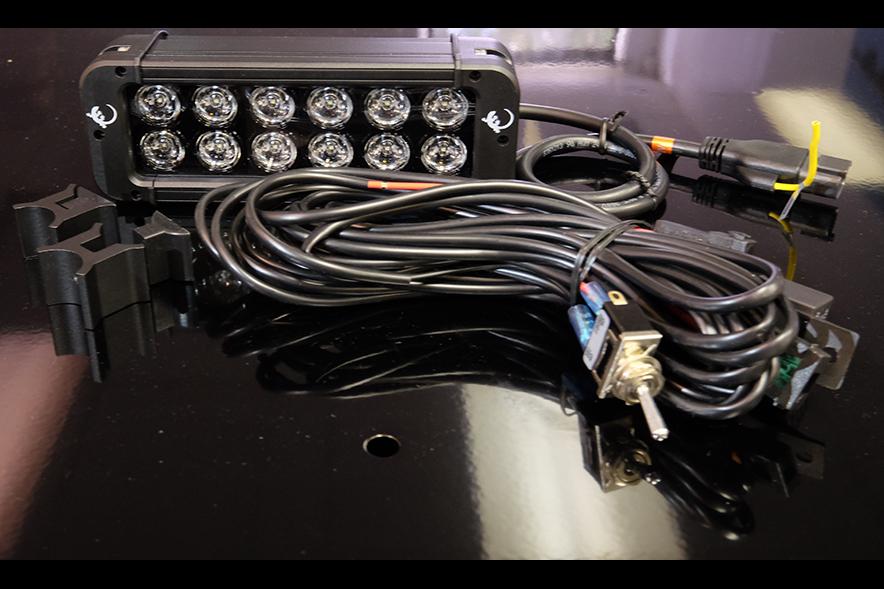

Xmitter Prime XP LED Light Bar
Wiring Harness
Installation Instructions
Adjustment Allen Wrench
